Bandalarga, the secrets of an “old”, small superboat

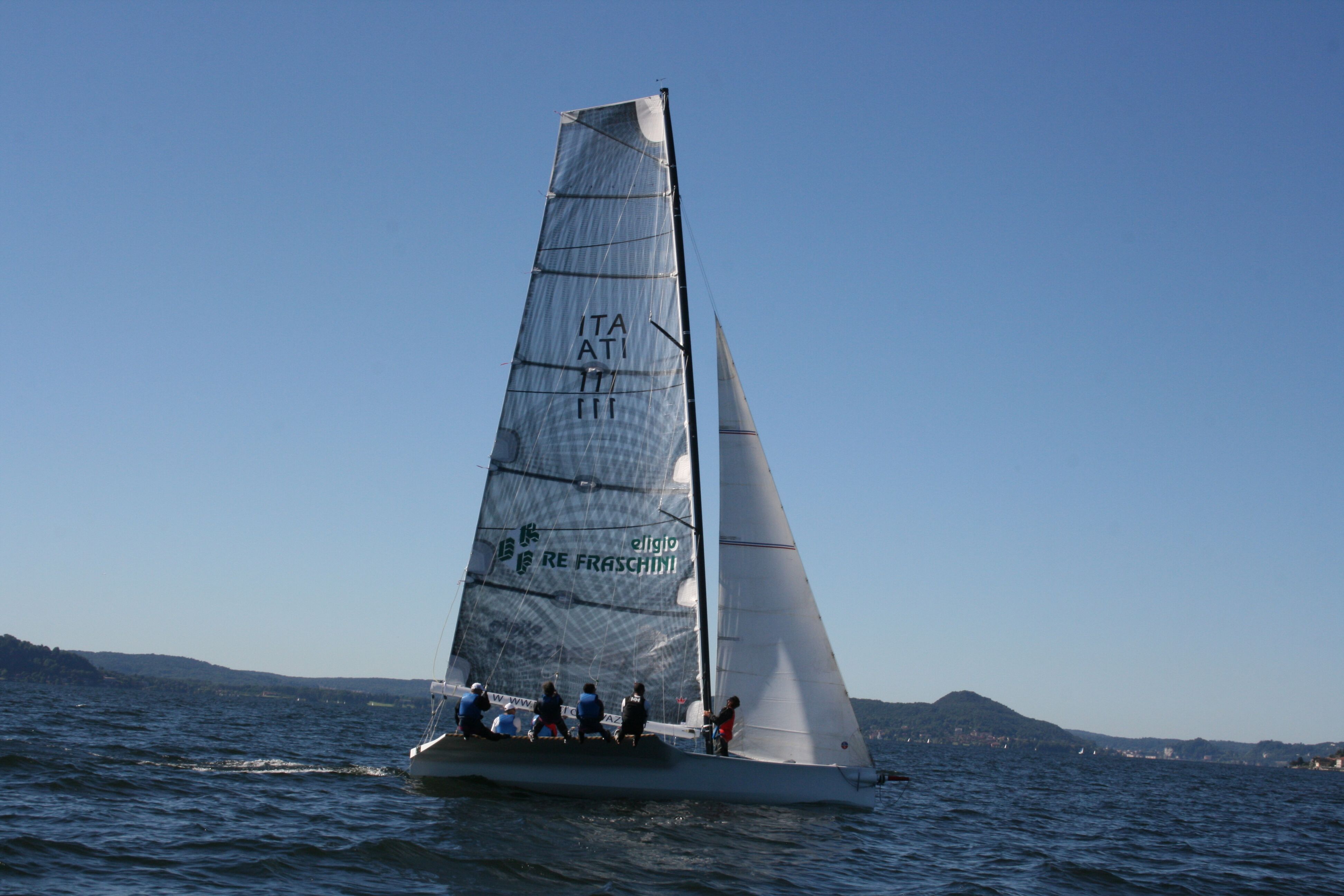

There was one boat, 27 years old, that put everyone in line at the 50th Luino Boatswain’s Trophy, the offshore regatta organized by the Alto Verbano Sailing Association. The absolute star of Lake Maggiore is her, her name is Bandalarga, and she is the Ultimate 30 of owner Piero Re Fraschini, bearer of Topvela of Laveno (Tiziano Nava is also aboard). Besides winning overall, he also triumphed in ORC B-C categories and also in ORC Overall.

Victory is a pretext for us. The pretext of telling how to make a “little old lady” a missile: on Bandalarga have had their hands full of protagonists.

“I remember that modified Melges 30, Paola (the very one that finished second in the Boatswain’s Trophy, after Bandalarga, ed.). He won every regatta on Lake Maggiore, keeping up with him was impossible. At least for me and Tiziano (Nava, ed.), on my Brenta 38: a beautiful daysailer not suitable for ‘racing.’ So we set out to find a boat that was fast enough to play for it.”. Speaking is Piero Re Fraschini (60), owner of Eligio Re Fraschini SPA, which produces composite parts for supercustomers (Ferrari, Groupama for the America’s Cup among others).

leggi anche

Old boat makes good board! The legendary Fraglia schooner has been “re-launched” after 50 years.

A “LABORATORY” BOAT
After engaging one of Italy’s most famous designers, Claudio Maletto, on the strength of his experience with Luna Rossa, and discarding the idea of buying an Ace 99, Re Fraschini and Nava found the right boat in Monfalcone: it was Longobarda, Bruce Farr’s old Ultimate 30 built by the Garda shipyard Dal Ferro: “This boat, designed in 1990, had been adapted to run the Barcolana,” explains Re Fraschini, “it had the dredges and a large spoiler at the stern, to have the proportions necessary to participate in the Trieste event. Well, all this was not needed by us and we started with a ‘total cleaning’ of the deck.”

Only the carbon hull, “ideally shaped for racing in medium-light winds,” has remained the original (the fin will soon be replaced by a new blade with reduced draft) and the boat, now called BandaLarga (almost an anagram of Longobarda), has become a sort of “workshop” at Cantiere Lavazza in Brebbia where people like Giorgio Provinciali, Dado Castelli, Luciano Lievi and Marco Di Natale have put their hands on it, in addition to Nava and Maletto. Only goal: to make it a rocket “and above all to have fun,” Piero points out.

In order to increase speed, the shaft was first worked on: “We replaced the old aluminum profile, which was very flexible, with a shaft made of high-modulus carbon fiber.”, Claudio Maletto explains, “We wanted it light and rigid on the basis of our experience with the Libera Class: in strong winds, it is better to reef the mainsail (a maneuver we facilitated by inserting a rail with trolleys for luffing the mainsail instead of the classic luff) rather than using the mast bending to change the sail shape.”

THE INCREASE IN LOADS

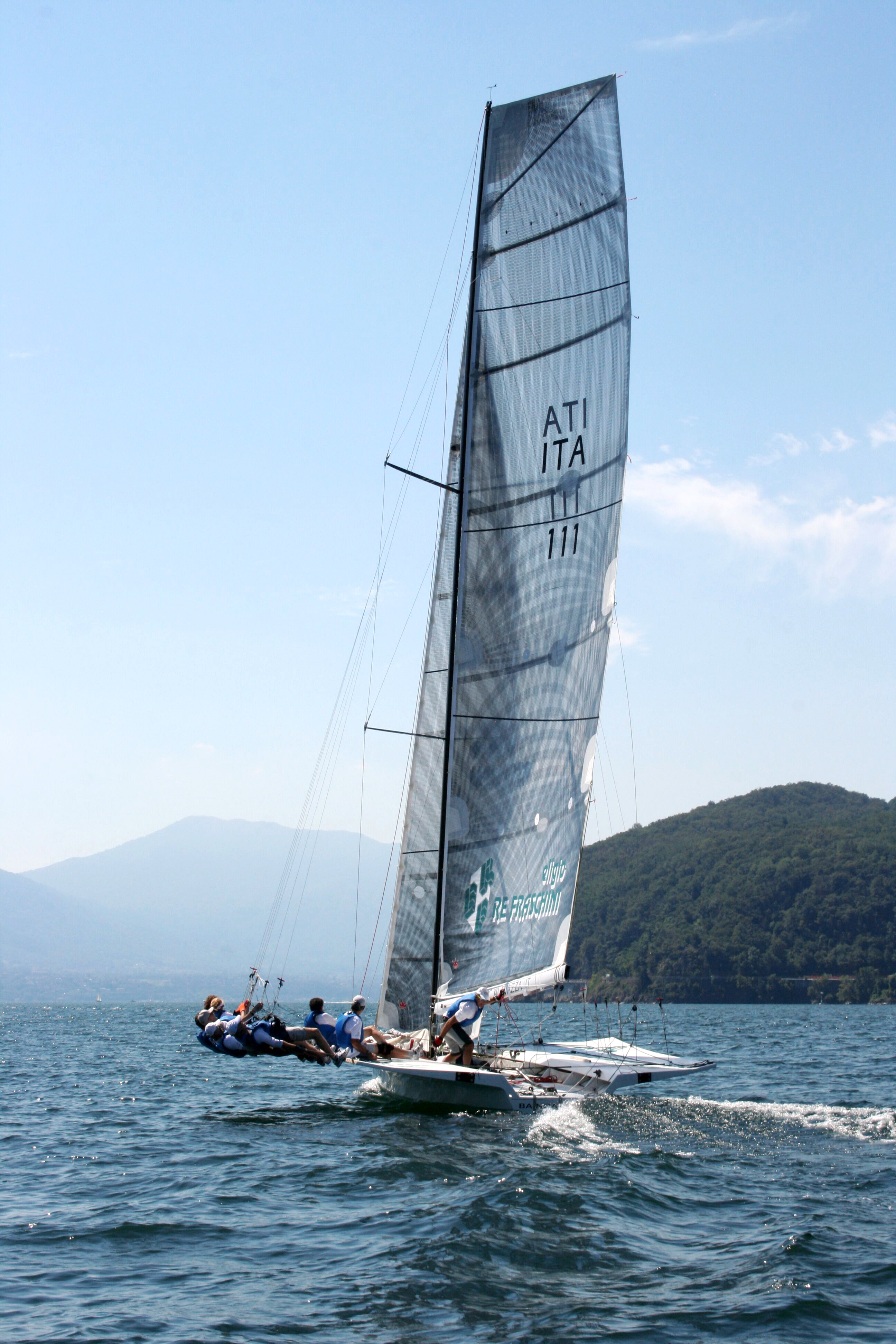

The new mast (157 mm the longitudinal dimension, including the mainsail luff rail footprint, which is reduced to 104 in the tapered one), is associated with a low-extension sail plan, which allowed an increase in sail area without increasing the total length of the mast compared to the previous one. The sails are made of mixed Kevlar and carbon laminate, designed by Dado Castelli and made by Marco Pomi of Elvstrom. “Since these boats achieve maximum speed by exaggerating the righting moment,” Maletto continues, “we equipped the boat, already very wide because of its stiff wings, with six trapezoids, consequently the loads on the mast are increased.”

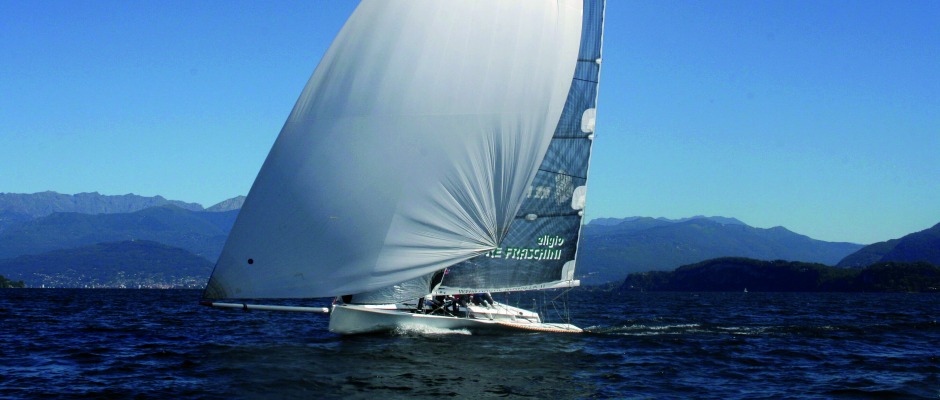

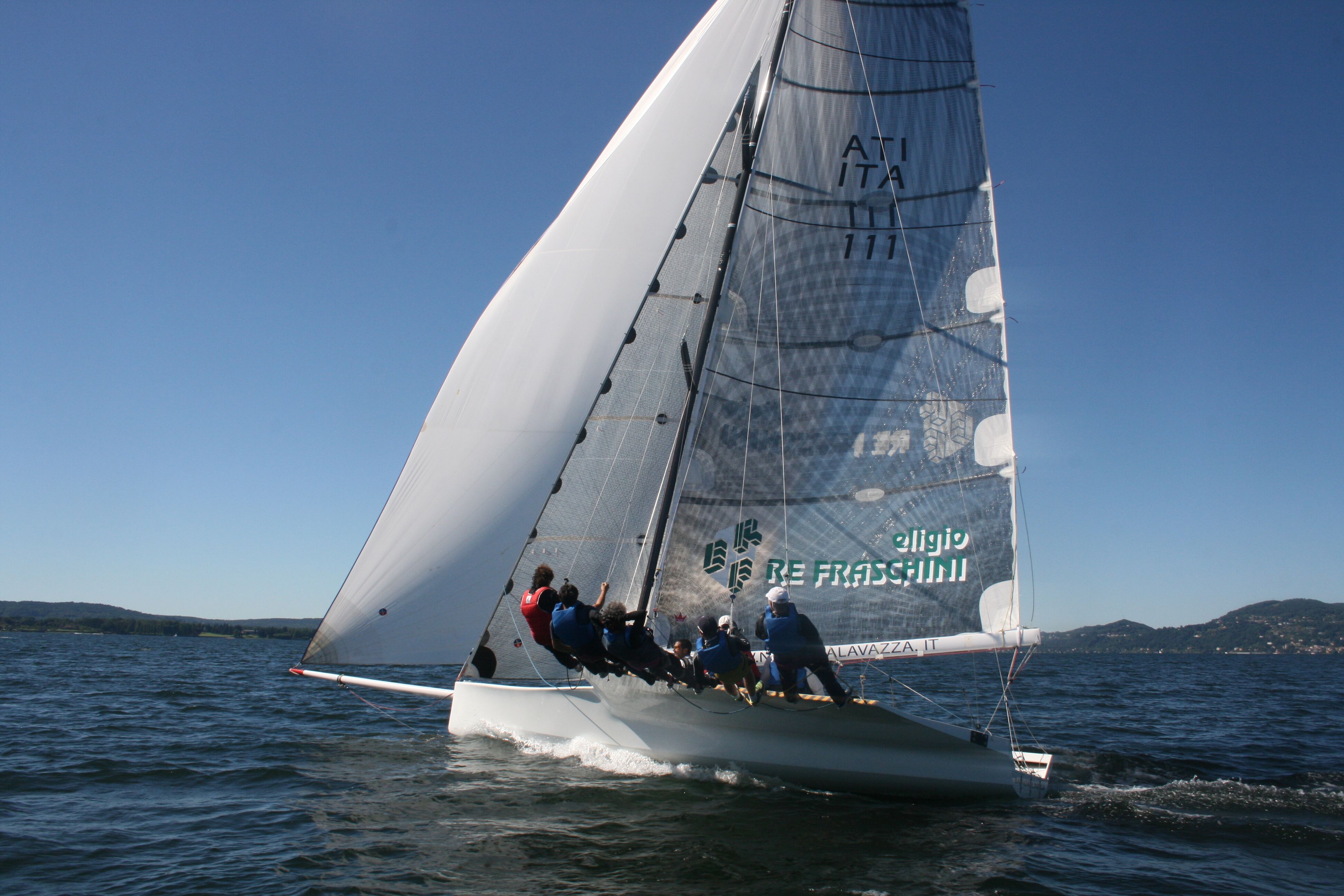

To make it easier for the crew to maneuver, they opted for a mid-cockpit winch from which to work on halyards and sheets. Also due to the increased loads, all the boat’s focal points (mast foot, forestay heath) were properly checked and where necessary, reinforced. Another detail that jumps out at you is the so-called TPS (short for tack point of spinnaker, in IMS parlance), which is the distance between the mast and the tack point of the asymmetric: it measures an impressive 7.64 meters. “This is thanks to a 4.44-meter retractable bowsprit,” Maletto explains-a solution that allows the sail plan to be exaggerated at the carriers. Finally, a hydraulic cylinder was applied on the forestay to tension the rigging since the mast is rigged with two orders of spreaders angled at 30°.

WHAT A BOMB!
But at the end of the day, we ask Re Fraschini, all this America’s Cup engineering work (by the way, the mast was designed by Francesco Pelizza’s engineering firm AMS and built with the know-how of Eligio Re Fraschini SPA) Has it paid off? “And how! Upwind we reach 8 1/2 knots, and downwind, in medium winds, we touched 16 knots.”.

leggi anche

Winning a world championship in your own land is a crazy thrill. Right Magdalena?

BANDALARGA NUMBERS
Hull length m 9.14
Width. at b. max m 5.10
Pesc. Original keel m 3.00 (m 2.2 the new one)
Displacement kg 948
Ballast kg 200
Sup. sail sqm 79.10
Mainsail sqm 55.70
Genoa sqm 23.40
Tails 0 sq m 46
Asymmetrical sqm 137.70
D m 13.70
E m 5.40
ISP m 14.48
J m 3.20
TPS m 7.64
Hull material Carbon
